Pallet Rack System

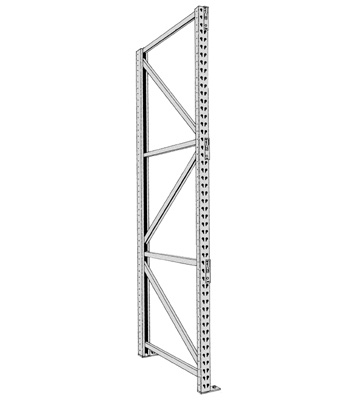

Pallet Rack Uprights

Available in either Regular Duty and Heavy Duty Configurations

Pallet Rack Uprights

  Pallet Rack Uprights

All Pallet Rack frames feature welded footplates, 2" on center beam adjustment, size availability to 48" wide and 192" high. Sahara or Blue-Gray are standard colors. Frame size should be chosen to allow a minimum pallet overhang of 2" front and 2" rear.

The Pallet Rack load capacity per frame is 26,000 LB. To preclude overturning, the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally.

Pallet Rack Upright Frames

Pallet Rack Upright Frames

Height

Depth

Regular Duty Heavy Duty
72" 24" $86 $93
30" $88 $95
36" $89 $96
42" $91 $98
48" $92 $99
84" 24" $89 $97
30" $91 $99
36" $93 $100
42" $94 $102
  48"

$96

$103
  96" 24" $92 $102
  30" $94 $104
  36" $96 $105
  42" $97 $107
  48" $99 $108
  108" 24" $95 $106
  30" $97 $108
  36" $99 $109
  42" $100 $111
  48" $102 $112
Pallet Rack Upright Frames 120" 24" $104 $116
30" $106 $118
36" $109 $121
42" $111 $123
48" $113 $125
132" 24" $107 $120
30" $110 $123
36" $112 $125
42" $114 $127
48" $116 $129
  144" 24" $111 $126
  30" $113 $128
  36" $115 $130
  42" $118 $132
  48" $119 $134

168" 36" N/A $151
42" N/A $154
48" N/A $156

192" 36" N/A $162
42" N/A $164
48" N/A $166
